2-Channel Simultaneous B-Mount Charger

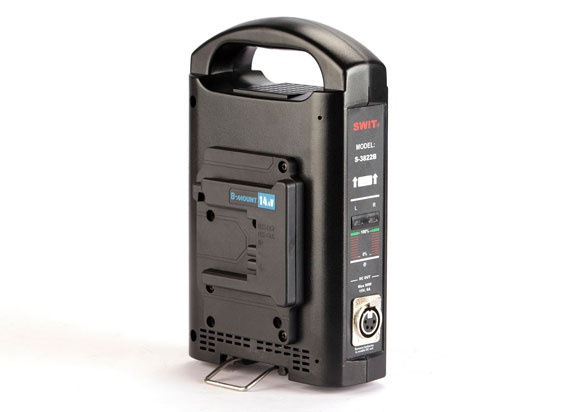

The S-3822B is a portable 2-channel simultaneous charger designed for B-mount batteries. Each channel provides DC 16.8 V, 3 A, and 50 W charging output, allowing two batteries to be charged simultaneously.
14.4 V Charging Mode
The S-3822B charges B-mount batteries at DC 16.8 V and is compatible with B-mount batteries that support 14.4 V nominal voltage mode, including the SWIT BIVO series, Bebob, and CoreSWX Bi-voltage series.
Note: The S-3822B does not support or charge batteries in 28.8 V nominal voltage mode.
LED Charging Indicators
LED indicators on the front panel display the charging status of each channel:
- Red: Battery is charging
- Green: Battery is fully charged
- Flashing red: Charging error; please check the battery
AC-DC Adaptor Output
The S-3822B features a 4-pin XLR female connector on the front panel. When connected to the optional SWIT S-7102 4-pin XLR female-to-male cable, the charger can also function as an AC-DC adaptor, providing DC 15 V, 6 A, 90 W output.
