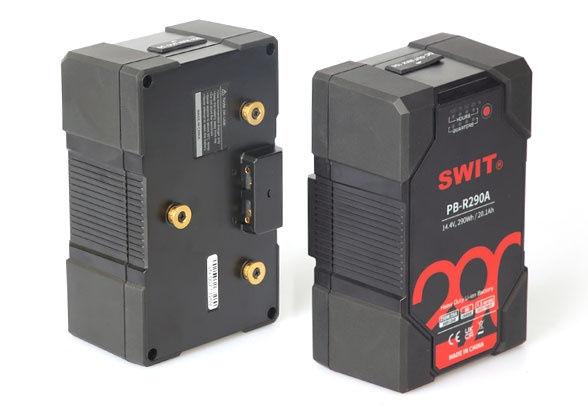

PB-R290A 290Wh Heavy Duty Gold Mount Battery, Strong 1.5m Drop Off Proof

Availability: Usually ships the next business day.


Heavy Duty Gold Mount Battery

PB-R290A is a 290Wh Gold Mount battery, with dual housing heavy duty structure, 1.5m drop-off proof. Featured high load, fast charging and digital power info display for cameras, lights and field video production equipments.


1.5m Drop-off Proof (Dual housing + Robber cover)

PB-R290A has innovative dual housing structure: the inner cell cage and outer anti-shock housing with rubber covers. The structure makes the battery quite strong, anti-shock. The battery can survive from 1.5 meters any angles drop-off.


290Wh / 20.1Ah Capacity

Consists of 24pcs high class 18650 battery cells, and reaches 290Wh / 20.1Ah high capacity.
Can run approx 11 hours for normal ENG cameras, and approx 3.5 hours for ARRI ALEXA.


High Load for Cine Cameras

At least 250W / 20A load

PB-R290A provides at least 250W/20A high load even at 1% capacity (Peak load up to 305W), to drive high power Cine cameras and on-camera devices together. The high load cells will also ensure battery life comparing to normal load batteries if long time full load output. Over current protection: 24A.


6A Fast Charging

Using SWIT 6A fast charger

PB-R290A supports 6A fast charging by SWIT PC-P461A or S-3812A fast charger, to save more than 50% charging time. The 290Wh PB-R290A battery can be charged from 0 to 80% after 2.5 hours, and fully charged within 3.8 hours.


8-LED Remaining Time Read

PB-R290A has the innovative 8-LED power indicators. When free or charging, the LEDs will indicate current capacity percentage, and when battery is discharging, the LEDs will display the remaining running time at the current discharging power, accurate to 15 minutes.


D-tap Socket

A D-tap DC output socket is equipped on the top side of the battery pack, to power the other on-camera equipments together.
The Max output current of D-tap is 10A.


PB-R290A 290Wh Heavy Duty Gold Mount Battery, Strong 1.5m Drop Off Proof
