S-4609 is a portable mini converter of SDI audio de-embedder, supports up to 3Gb/s SDI, and can be widely used in broadcast field production and professional audio/video conversion and transmission.

S-4609 SDI Audio De-Embedder

SKU: S-4609
$345.00Price
    • Portable SDI to Audio De-embedder
    • 3G/HD/SD-SDI supported
    • De-embed any 2-ch from first 8-ch audio
    • Output AES/EBU audio
    • Output 6.35mm balanced audio
    • Provide 2x SDI loop output
    • Power/input/output status indicator
    • Pole-tap 6-18V DC power input
    • Heavy duty aluminium housing
    • Bottom screw threads for installing

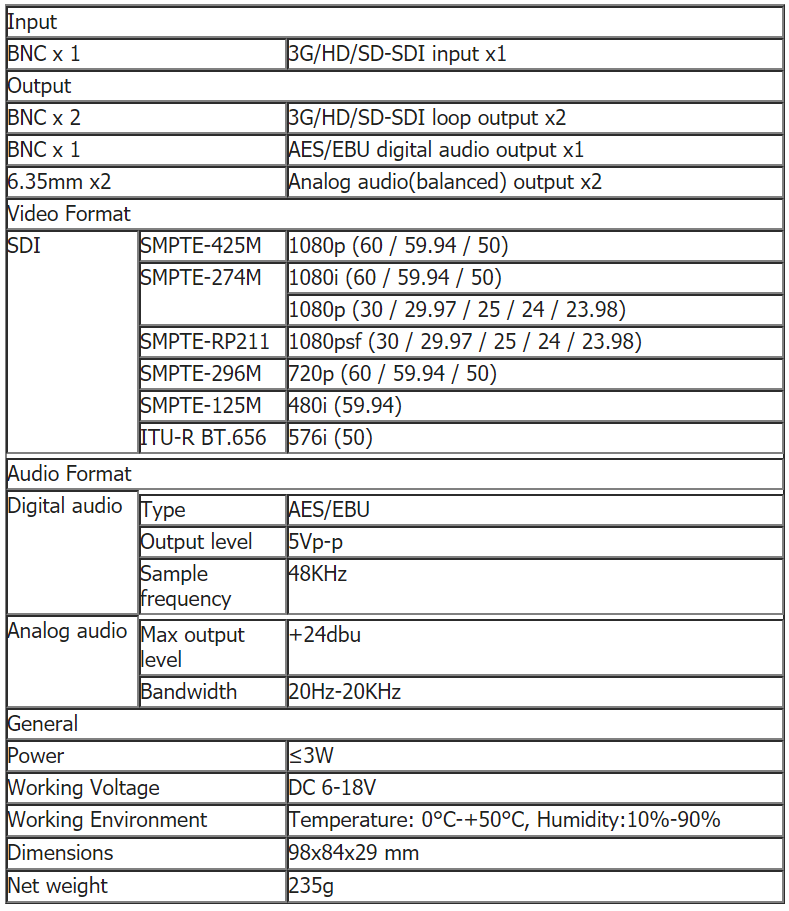

  • Input and Output

    S-4609 provides:

    • 1x 3G/HD/SD-SDI input
    • 2x 3G/HD/SD-SDI loop output (Reclocked)
    • 1x AES/EBU digital audio output (2-ch)
    • 2x 6.35mm analog audio output (balanced)
      (If both AES/EBU audio and analog audio is connected, only AES/EBU audio outputs)



    De-embed Channel Selection

    S-4609 can de-embeded any 2-ch audio from SDI first 8-ch embedded audios. User can select the channel number to be de-embedded by the 6 switchers on the front panel of the product. And on the rear side, S-4609 provides the description of the 6 switchers for reference.



    Status Indicators

    S-4609 provides 3 LED indictors, to check if the power is connected, if the SDI input is recognized, and if de-embedded audio is deliver.


    Power Supply

    The mini converter is powered by pole-tap DC socket. The package includes an AC-DC power adaptor, and you can also connect DC cable from 6-18V batteries.


    Heavy Duty Housing

    The S-4609 mini converter adopts unibody aluminium alloy housing, strong for field using and protects the audio/video connectors effectively.



    Installation

    S-4609 provides the bottom 1/4-inch screw threads for fixing on cameras, and an installing plate is supplied in the package, for fixing on wall and binding the BNC/audio cables.


    Standard Package

    S-4609 standard package includes:

    • 1x AC-DC power adaptor
    • 1x Install plate


    Warranty Period: Two years conditional.
