S-4606 OPTICAL to SDI Converter

• Portable Optical Fiber to 3G/HD/SD-SDI Converter
• 1 Optical input, 2 SDI output
• Single-mode Optical fiber, LC connector
• Max 20km reliable transmission
• Support hot swap of optical module
• Power/SDI input status indicator
• Heavy duty aluminium housing
• Bottom screw threads for installing

Input and Output

S-4606 offers:

• 1x LC Optical Fiber input
• 2x 3G/HD/SD-SDI loop output



Encoder and Decoder

The S-4606 works as decoder to convert Optical fiber back to SDI, and you can use SWIT S-4605 (SDI to Optical fiber encoder) together, to transmit SDI via fiber up to 20km reliable distance.


Status Indicators

S-4606 provides 2 LED indicators, to check if the power is connected, and if the output SDI is recognized.


Power Supply

The mini converter is powered by pole-tap DC socket. The package includes an AC-DC power adapter,and you can also connect DC cable from 6-18V batteries.


Heavy Duty Housing

The S-4606 mini converter adopts unibody aluminium alloy housing, strong for field using and protects the BNC connectors effectively.



Installation

S-4606 provides the bottom 1/4-inch screw threads for fixing on cameras, and an installing plate A-IP00 is supplied in the package, for fixing on wall and binding the BNC cables and optical fibers.

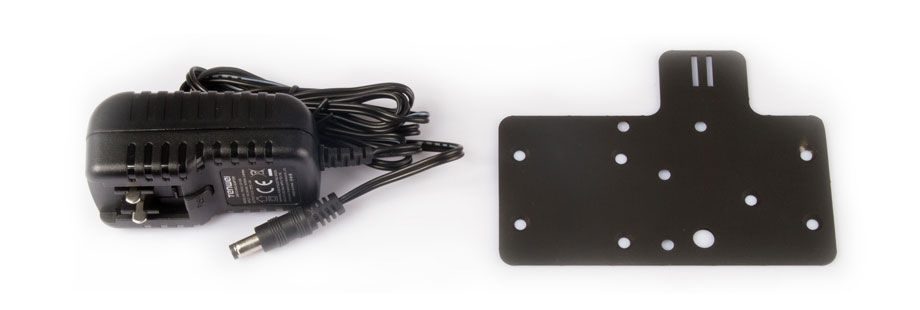

Standard Package

S-4606 standard package includes:

• 1x AC-DC power adaptor (A-PA03)
• 1x Install plate (A-IP00)
• 1x AC-DC power adaptor (A-PA03)
• 1x Install plate (A-IP00)

Warranty Period: Two years conditional.
