The MMIO ADA is a miniature high performance analog audio distribution amplifier for the broadcast and Pro A/V industry. Exceptional performance features include excellent response, noise and distortion specifications. MMIO ADA functions with 4 balanced outputs. Additionally, MIO ADA can be used to distribute LTC.

One analog audio input
Four distribution outputs
Power supply indicator
Input signal indicator
Mini MIO box structure measuring 3.8 x 2.5 x 1.1"
Power socket with fixing lock

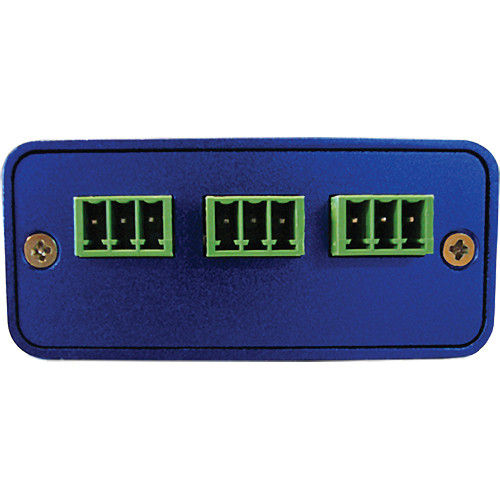

MMIO ADA 1x4 Analog Audio Distributor

Name: MMIO ADA 1x4 Analog Audio Distributor
SKU: MMIO ADA

SKU: MMIO ADA

$139.00

Quantity

Support balanced analog audio

Adopt 3-pin pheonix connector

LEDs for power & signal presence indication

Analog Audio Inputs

Input	3-pin (balanced)
Impedance	600 Ω
Frequency Response	At 20 Hz to 20 kHz: < ±0.25 dB

Analog Audio Outputs

Output Interface	3-pin (balanced or unbalanced)
Impedance	600 Ω
Frequency Response	At 20 Hz to 20 kHz: < ±0.25 dB

General

Status Indicator	Input signal status indicator, power supply indicator (indicated by shining or extinguishing of the green LED)
Power Consumption	12 VDC, 1.5 A
Dimensions	3.8 x 2.5 x 1.1" (96.7 x 65.0 x 28.0 mm)

Packaging Info

Package Weight	0.8 lb
Box Dimensions (LxWxH)	7.5 x 4.6 x 2.9"

MMIO ADA 1x4 Analog Audio Distributor

Key Features

Specifications

Warranty Period:

User Manual:
