LC-D420C 4-ch Simultaneous DV battery Charger for Canon Battery

Availability: Usually ships the next business day


LC-D420C can charge 4 DV batteries simultaneously, with 2A charging current per channel. 【Please note that battery sold separately】

LC-D420C is designed for Canon BP series, SWIT S-8945, S-8845 batteries.


LED Charging Indicators

LC-D420C charger has 4-LED indicators for each charging channel, and display the real-time battery capacity level.
In case of the 4 LEDs are all flashing or all off, please check the connection condition of the batteries and plates, and restart the charger.

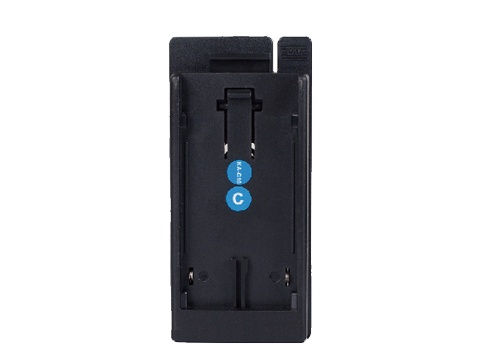

Exchangeable DV Plates

Snap-on type quick exchangeable DV battery plates designed; support the following types of battery plates:


Charger model        Plate model          Applicable batteries

LC-D420C                  KA-C10C              Canon BP series, SWIT S-8945, S-8845

LC-D420D                  KA-C10D              Panasonic VBD/CGA series;SWIT S-                                                                                8D98, S-8D58, S-8D62

LC-D420F                   KA-C10F              SONY NP-F series, SWIT S-8972, S-8970,                                                                          S-8770

LC-D420V                   KA-C10V             JVC BN-VF823, SWIT S-8823

LC-D420I                     KA-C10I               JVC SSL series, SWIT S-8I75, S-8I50


Warranty Period: Two years conditional.

LC-D420C 4-ch Simultaneous DV battery Charger for Canon Battery

    • 4-ch simultaneous charging
    • 2A charging current per channel
    • Snap-on exchangeable DV plates
    • Mixed types of DV batteries charging
    • 4-LED charging indicators
  • Input 100~240VA, 50/60Hz
    Max input power 100W
    Charging output DC 8.4V, Max 2A×4-ch
    Working temperature 0°C ~ +40°C
    Working humidity 10% ~ 90%
    Dimension 220×125×69.3mm
    Weight Approx. 713g
