Availability: Usually ships in 1-2 weeks



E-5010 is a Camera Remote Control Unit that universal compatible with SONY and Panasonic cameras, supports IRIS, GAIN, Master Black Level, B&W Balance, etc controlling.


Key Features:

  • Universal Compatible with SONY and Panasonic cameras
  • Directly connect with camera or work in SWIT EFP Fiber camera system
  • Lever controlled IRIS with value display
  • LCD display operation data
  • Independent M.PED control knob
  • Shutter speed, B&W balance, DTL control
  • Video recording and Timecode display
  • Thinner size design



Specifications:

Working Voltage DC 9V~16V
Power consumption 2.5W
Input/Output CAM/BS Round 10 pin
Max. Cable length 50 meters
Working temperature 0°C ~ 40°C
Storage temperature -20°C ~ 60°C
Working Humidity 10% ~ 80%
Dimensions 64mm * 36mm * 245mm
Net weight Approx. 450g



Connection (Directly to camera or connected in SWIT EFP system)

E-5010 Remote Control Unit provide a 10-pin connection port, which can directly connected to camera REMOTE port via particular cables, or connected to CCU of SWIT EFP Fiber Camera System to control the cameras.
The RCU cables are customized according to the connector type and length. (Max cable length: 50 meters)


IRIS Control

The IRIS is controlled by lever, and an independent Numeric Display can indicate IRIS value.


LCD Display

The E-5010 RCU provides a LCD screen to display the settings and parameters that read from camera. The definitions of hot buttons are displayed on LCD.

Warranty Period: Two years conditional.

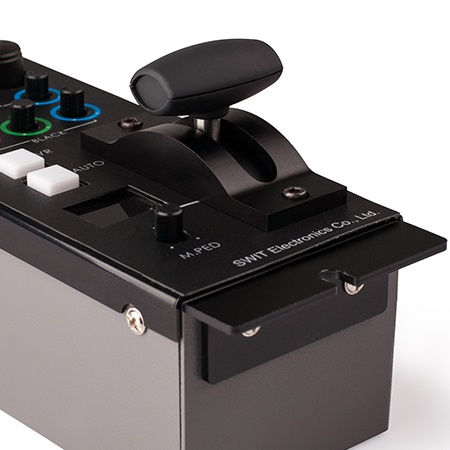

E-5010 Camera Remote Control Unit

SKU: E-5010
$1,200.00Price
