Vocal M V4 UHF 2-Person Wireless Microphone with Recorder/Plug-on Transmitter

Availability: Usually ships the next business day.


CKMOVA Vocal M V4  is a 2-person wireless microphone system with recorder up to 492ft operating range. It includes one 3-pin XLR Plug-on transmitter, one body-pack transmitter and one receiver. The 3-pin XLR (Female) Plug-on transmitter provides +48V phantom power, gives user an options to use condenser mic or mixer.


OLED Screen

Equipped with an OLED screen, users can easily monitor of battery status, volume level, audio output mode and more connective information.


MicroSD Card for Recording

With a MicroSD slot on transmitter, the system can record the original audio data for later use.


Mute Button on Both transmitter and receiver

The mute button on both transmitter and receiver for convenience to operate.


Long Battery Life

With a built-in rechargeable battery that lasts up to 12 hours, the Vocal M V4 is perfect for long recording sessions.


Real-time Monitoring

Both transmitter and receiver equipped with a 3.5mm headphone Jack that allows for easy real-time audio monitoring.


Mic & Line Input (Bodypack Transmitter)

Both mic input and line input are compatible, making this system versatile and suitable for a variety of recording situations.


+48V phantom power 3-pin XLR connector

The 3-pin XLR Plug-on Transmitter provides +48V phantom power, gives users an options to use condense mic or mixer.


Auto/Manual Pairing

Auto or manual pairing function is for adaptability to different conditions.



Input & Output


The Transmitter(Body-pack):

  • 1x Locking 3.5mm TRS Female Mic/Line Input
  • 1x Locking 3.5mm Headphone Monitor Jack
  • 1x USB-C Port
  • 1x MicroSD Card Slot


The Transmitter (Plug-on) :

  • 1x 3-pin Female XLR Plug-in Jack
  • 1x Locking 3.5mm monitor Headphone Jack
  • 1x USB-C port
  • 1x MicroSD card slot


The Receiver:

  • 1x Locking 3.5mm TRS Female Local Mic Input
  • 1x Locking 3.5mm TRS Female Audio Output Jack
  • 1x Locking 3.5mm Headphone Monitor Jack
  • 1x USB-C Port


Vocal M V4 UHF 2-Person Wireless Microphone with Recorder/Plug-on Transmitter

SKU: Vocal M V4
    • Frequency Range: 535-585MHz
    • Operating Range: 492ft (LOS)

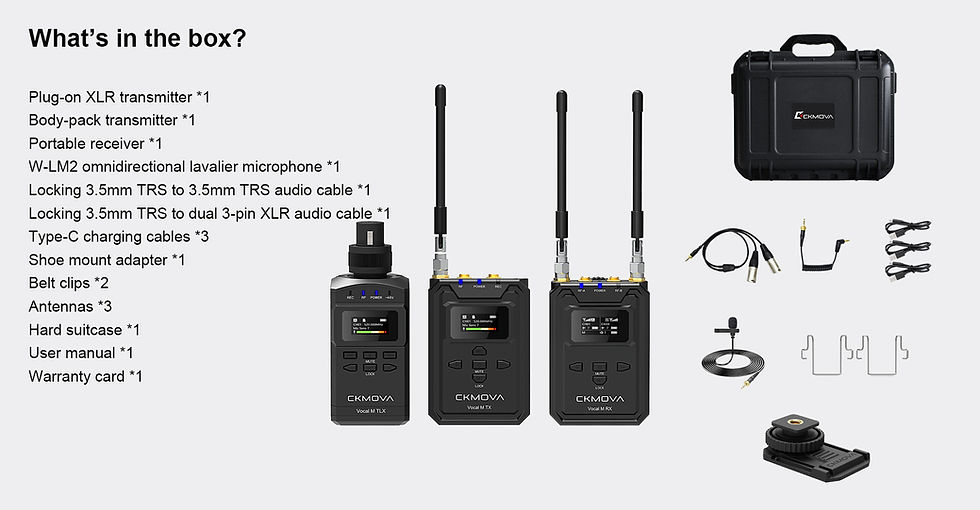

    • 2x Transmitters (1x bodypack Transmitter and 1x Plug-on Transmitter) and 1x Receiver
    • +48V phantom power Jack on one Transmitter (3-pin Female XLR)
    • Built-in Mic & External Mic selectable (Bodypack Transmitter)
    • Mic Input & Line Input compatible (Bodypack Transmitter)
    • Dual-Channel Receiver
    • Color OLED display
    • 12 hours battery life
    • 1/4 wavelengh antenna, detachable and 360° switchable
    • Mono & Stereo output selectable
    • Low cut filter (40Mhz, 80Mhz & 120Mhz) switchable
    • High frequency boost (1dB/2dB/3dB/4dB)
    • Bass & Treble recording mode
    • MicroSD card slot on Transmitter
    • Mute & key Lock function buttons on both transmitter & receiver
    • Locking 3.5mm TRS connections
    • USB-C charging slot
    • Durable aluminum alloy construction
